Overview

​

The Problem

• Multiple approval transactions per chain
• Separate signatures for each blockchain
• Complex coordination between different chain states
• Race conditions when executing cross-chain operations

​

Standard Cross-Chain Flow

• User approves Protocol A on Chain 1
• User approves Protocol A on Chain 2
• User signs/submits transaction on Chain 1
• User signs/submits transaction on Chain 2
• Protocol coordinates between chains (often through bridges or relayers)

​

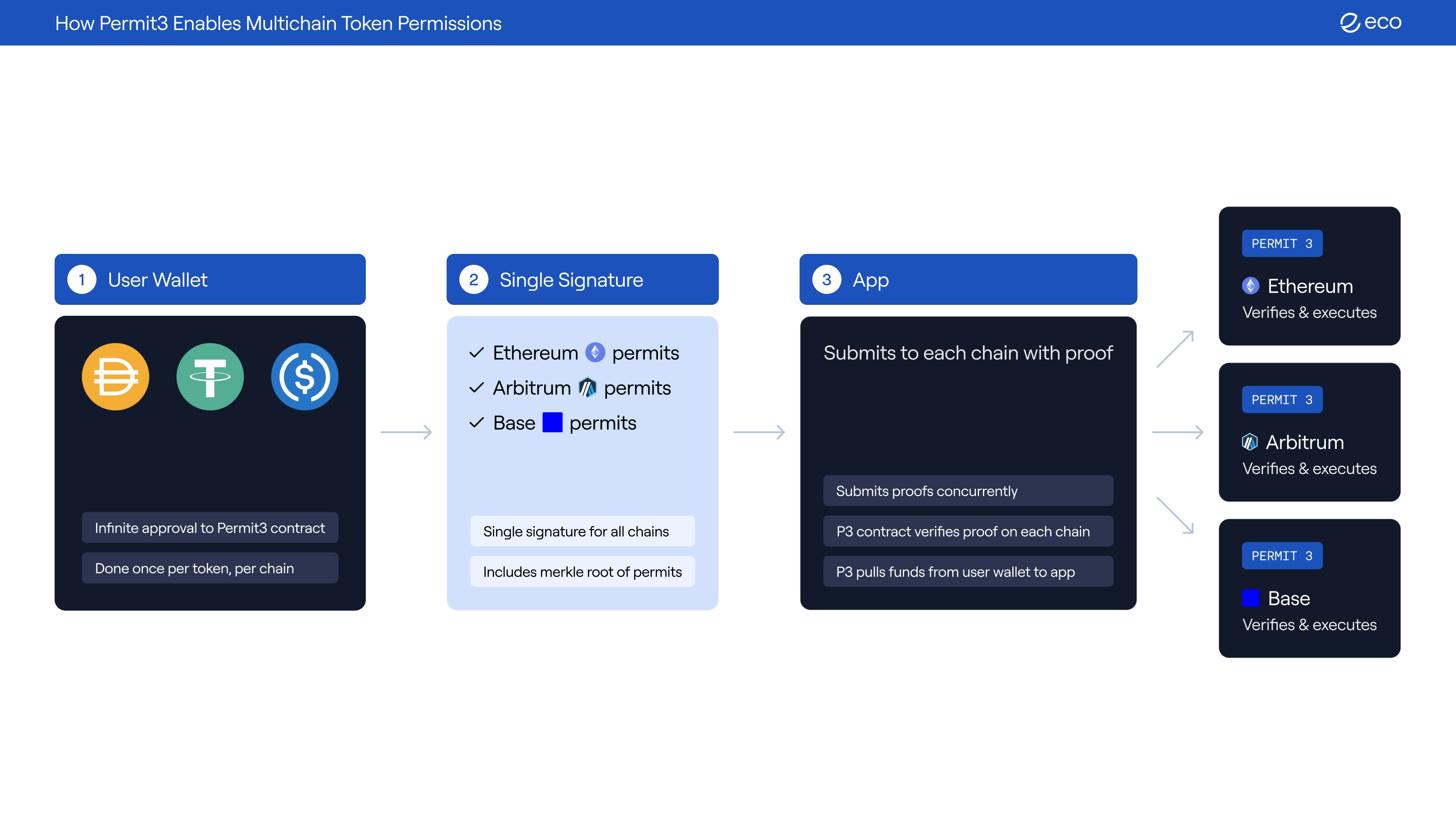

Permit3 Model

• User calls approve() on each chain’s ERC20 tokens to grant infinite allowance to the canonical Permit3 contract (one-time setup per token per chain)
• User signs a single off-chain permit message containing a merkle root of all intended operations across chains
• The signed message and merkle proofs are distributed to relevant chains by app
• Each chain’s protocol contract calls Permit3 contract with the appropriate merkle proof
• Permit3 verifies the proof against the signed root and executes the permitted operations

​

Core Components

​

Permit3 Contract

• Processes permit signatures for approvals and transfers
• Verifies EIP-712 signatures with standard and witness data
• Handles cross-chain operations through hash chaining
• Implements witness functionality for custom data verification

​

PermitBase Contract

• Tracks allowances with amounts and expiration times
• Handles token transfers through approvals
• Implements allowance modes (increase, decrease, lock, unlock)
• Provides emergency account locking functionality

​

NonceManager Contract

• Uses non-sequential nonces for gas efficiency
• Supports cross-chain nonce invalidation
• Implements salt-based signature replay protection
• Provides domain separation for EIP-712 signatures

​

Contract Inheritance Structure

                 ┌───────────────┐
                 │   EIP-712     │
                 └───────┬───────┘
                         │
                 ┌───────┴───────┐
                 │ NonceManager  │
                 └───────┬───────┘
                         │
                 ┌───────┴───────┐
                 │  PermitBase   │
                 └───────┬───────┘
                         │
                 ┌───────┴───────┐
                 │    Permit3    │
                 └───────────────┘

​

Key Data Structures

​

Allowance Structure

struct Allowance {
    uint160 amount;        // Approved amount
    uint48 expiration;     // Timestamp when approval expires
    uint48 timestamp;      // Timestamp when approval was set
}

​

AllowanceOrTransfer Structure

struct AllowanceOrTransfer {
    uint48 modeOrExpiration;  // Operation mode or expiration time
    address token;            // Token address
    address account;          // Spender or recipient
    uint160 amountDelta;      // Amount change
}

​

ChainPermits Structure

struct ChainPermits {
    uint64 chainId;              // Target chain ID (uint64 for gas optimization)
    AllowanceOrTransfer[] permits; // Operations for this chain
}

​

Cross-Chain Permit Parameters

function permit(
    address owner,
    bytes32 salt,
    uint48 deadline,
    uint48 timestamp,
    ChainPermits calldata permits,    // Permit operations for the current chain
    bytes32[] calldata proof,         // Standard merkle proof using OpenZeppelin's MerkleProof
    bytes calldata signature
) external;

// Uses OpenZeppelin's MerkleProof.processProof() with bytes32[] arrays
// Each element represents a sibling hash needed for proof verification

​

Core Operations

​

1. Permit Processing

1. Single Chain Permits:
   • Process token approvals for a specific chain
   • Verify signature against chain permits
   • Update allowances or execute transfers
2. Cross-Chain Permits:
   • Process token approvals across multiple chains
   • Chain permit hashes together for verification
   • Execute operations on current chain only

​

2. Allowance Management

1. Transfer Mode (modeOrExpiration = 0):
   • Executes immediate token transfer
   • account field represents recipient
   • amountDelta represents transfer amount
2. Decrease Mode (modeOrExpiration = 1):
   • Reduces existing allowance
   • amountDelta represents decrease amount
   • Special case: type(uint160).max resets to 0
3. Lock Mode (modeOrExpiration = 2):
   • Locks allowance for security
   • Blocks any increases or transfers
   • Requires newer timestamp to unlock
4. Unlock Mode (modeOrExpiration = 3):
   • Cancels locked state
   • Sets new allowance amount
   • Requires newer timestamp than lock
5. Increase Mode (modeOrExpiration > 3):
   • Value represents expiration timestamp
   • Increases allowance by amountDelta
   • Updates expiration if timestamp is newer

​

3. Nonce Management

function _useNonce(address owner, bytes32 salt) internal {
    if (usedNonces[owner][salt] != NONCE_NOT_USED) {
        revert NonceAlreadyUsed(owner, salt);
    }
    usedNonces[owner][salt] = NONCE_USED;
}

• Enables concurrent operations with different salts
• Optimizes gas usage compared to sequential nonces
• Supports cross-chain nonce management
• Prevents signature replay attacks

​

4. Witness Functionality

1. Type String Construction:
   Copy

   Ask AI

   bytes32 typeHash = keccak256(
       abi.encodePacked(PERMIT_WITNESS_TYPEHASH_STUB, witnessTypeString)
   );


2. Signature Verification:
   Copy

   Ask AI

   bytes32 signedHash = keccak256(
       abi.encode(
           typeHash,
           permitDataHash,
           owner,
           salt,
           deadline,
           timestamp,
           witness
       )
   );


3. Processing: After verification, the permit is processed using the standard flow while the application can verify the witness data.

​

Cross-Chain Mechanism

1. Hash permits for each chain individually
2. Build an Unbalanced Merkle Tree from all chain hashes (two-part structure)
3. Sign the Unbalanced root
4. Generate Unbalanced proofs for each chain
5. Process the portion relevant to the current chain

• Bottom Part: Efficient membership proofs within individual chains
• Top Part: Unbalanced upper structure that minimizes calldata for chains with high gas costs
• Verification: Merkle tree verification for security and compatibility
• Benefits: One signature for multiple chains with gas optimization potential
• Security: Chain ID validation prevents cross-chain replay attacks
• Extensibility: Supports witness data across chains with future optimization opportunities

​

Unbalanced Merkle tree Example

// Calculate the leaf hash for this chain's permits
bytes32 leaf = permit3.hashChainPermits(proof.permits);

// Verify the Unbalanced Merkle Tree proof using OpenZeppelin's MerkleProof
// (traverses both balanced subtrees and unbalanced upper structure)
bool valid = MerkleProof.processProof(
    proof.proof,
    leaf
) == merkleRoot;

// Verify signature against Unbalanced root
bytes32 signedHash = keccak256(abi.encode(
    SIGNED_PERMIT3_TYPEHASH,
    owner,
    salt,
    deadline,
    timestamp,
    merkleRoot  // The hybrid structure root
));

​

Security Features

1. Signature Validation:
   • EIP-712 typed signatures for structured data
   • Signature replay protection through nonces
   • Deadline validation to prevent expired signatures
2. Access Control:
   • Allowance-based access for token operations
   • Time-bound permissions with expiration timestamps
   • Owner validation for all operations
3. Account Locking:
   • Special locked state for emergency security
   • Operations blocked until explicit unlock
   • Timestamp validation for unlock operations
4. Chain ID Validation:
   • Explicit chain ID verification
   • Prevents cross-chain replay attacks
   • Works with witness functionality
5. Timestamp Ordering:
   • Operations ordered by timestamp across chains
   • Prevents race conditions in cross-chain operations
   • Critical for asynchronous allowance updates

​

Gas Optimization

1. Non-Sequential Nonces:
   • Bitmap-based nonce tracking
   • Constant gas cost regardless of nonce value
   • Efficient for concurrent operations
2. Batched Operations:
   • Process multiple permits in one transaction
   • Amortize fixed costs across operations
   • Reduce total transaction count
3. Efficient Storage:
   • Packed storage slots for allowances
   • Minimal state updates
   • Optimized data types
4. Cross-Chain Efficiency:
   • Execute only relevant operations on each chain
   • Single signature for multiple chains leveraging two-part structure
   • Optimized Unbalanced tree structure with gas optimization potential

​

Integration with External Systems

1. Permit2 Compatibility:
   • Implements IPermit interface for compatibility with contracts that are already using Permit2 for transfers
   • Existing contracts integrated with Permit2 can work with Permit3 without any changes
   • Maintains backward compatibility while offering enhanced functionality
2. ERC20 Token Interaction:
   • Works with any ERC20 token
   • No special token requirements
   • Compatible with standard token interfaces
3. Cross-Contract Integration:
   • Clear interfaces for external contracts
   • Witness functionality for custom verification
   • Support for complex integration patterns

​
